Name: Stack_Units_To_15m

Display Field: MS

Type: Feature Layer

Geometry Type: esriGeometryPolygon

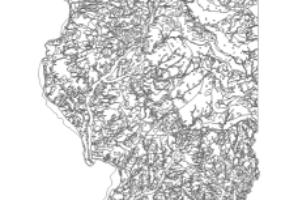

Description: This is a polygon feature class containing stack-unit map designations for Illinois. The primary source is ISGS Circular 542, Stack-unit Mapping of Geologic Materials in Illinois to a Depth of 15 Meters, Berg and Kempton (1988). The data have been subsequently updated from various sources. The nominal scale is 1:250,000.Stack-unit maps show the distribution of earth materials vertically from the surface to a specified depth and horizontally over a specified area They also show the succession of geologic units in their order of occurrence within the specified depth. This information is now available for the entire state of Illinois with the publication of the statewide stack-unit map of geologic materials to a depth of 15 meters (49.3 ft.).The statewide stack-unit map, originally made up of four separate regional maps, provides basic geologic information for interpretive mapping for regional, resource-based land-use planning and decision making. This feature class is the result of appending the four separate digital files into one statewide dataset. Note also that this feature class incorporates stack-unit data from the ISGS Paducah Stack-Unit map (Berg and Greenpool, 1994). The portion that falls within the 1 x 2 degree Paducah quadrangle had been entirely updated with data from the Paducah stack-unit map coverage.

Copyright Text: Illinois State Geological Survey

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.0187239034387225E7
YMin: 4434923.02912492
XMax: -9739923.249408778
YMax: 5237435.500482802
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [130, 130, 130, 0]
Outline:
Style: esriSLSSolid
Color: [78, 78, 78, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 10
Font Family: Tahoma
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 176125.71825163183
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• MS ( type: esriFieldTypeString, alias: MS, length: 20 )
• STACK_UNIT ( type: esriFieldTypeDouble, alias: STACK_UNIT )
• MS1 ( type: esriFieldTypeString, alias: MS1, length: 4 )
• MS2 ( type: esriFieldTypeString, alias: MS2, length: 4 )
• MS3 ( type: esriFieldTypeString, alias: MS3, length: 4 )
• MS4 ( type: esriFieldTypeString, alias: MS4, length: 4 )
• MS5 ( type: esriFieldTypeString, alias: MS5, length: 4 )
• UNIT1 ( type: esriFieldTypeSmallInteger, alias: UNIT1 )
• QUAL1 ( type: esriFieldTypeSmallInteger, alias: QUAL1 )
• UNIT2 ( type: esriFieldTypeSmallInteger, alias: UNIT2 )
• QUAL2 ( type: esriFieldTypeSmallInteger, alias: QUAL2 )
• UNIT3 ( type: esriFieldTypeSmallInteger, alias: UNIT3 )
• QUAL3 ( type: esriFieldTypeSmallInteger, alias: QUAL3 )
• UNIT4 ( type: esriFieldTypeSmallInteger, alias: UNIT4 )
• QUAL4 ( type: esriFieldTypeSmallInteger, alias: QUAL4 )
• UNIT5 ( type: esriFieldTypeSmallInteger, alias: UNIT5 )
• QUAL5 ( type: esriFieldTypeSmallInteger, alias: QUAL5 )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )
• Shape_Area ( type: esriFieldTypeDouble, alias: Shape_Area )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
